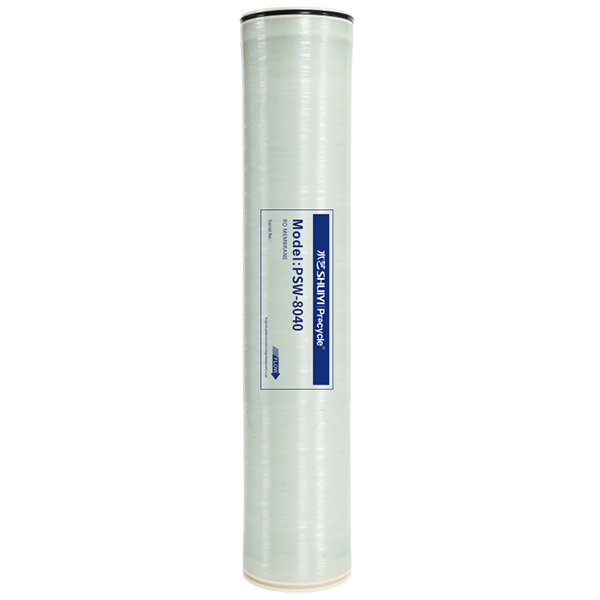

Shuiyi Procycle® High-Pressure Reverse Osmosis Membrane Products
Shuiyi Procycle® series high-pressure reverse osmosis membrane products feature stable desalination rates, high water production, and high-pressure tolerance. Designed with a low-pressure differential, these products offer more stable performance and cost-effectiveness in high-salinity concentration applications. Composite membrane anti-fouling technology enhances resistance to organic and biological pollution.
Description
- Stable water quality
Dense separation layer ensures stable performance in high salinity concentration. - High recovery rate
Special element structure designed to withstand high pressures and achieve high recovery rates. - Low energy consumption
Feature a special structural design that results in lower pressure drops and longer operation cycles.
Data Sheet
| Model Item | Parameter | |
| PSW-8040 | ||
| Membrane element parameters⁽¹⁾ | Effective membrane area | 37m² |
| Membrane material | Aromatic polyamide | |
| Structure | Spiral-wound | |
| Inlet mesh thickness | 34mil | |
| Dry membrane weight | 13kg | |
| Wet membrane weight | 15kg | |
| Length | 1016mm | |
| Diameter | 201mm | |
| Collector pipe diameter | 29mm | |
| Standard test solution | 32000mg/L NaCl | |
| Operating pressure | 5.52MPa | |
| Test temperature | 25℃ | |
| Recovery rate | 8% | |
| pH | 7~8 | |
| Water production rate ⁽²⁾ | 32m³/d | |
| Standard rejection rate | 99.7% | |
| Membrane operational parameters | Maximum operating pressure | 6.9MPa/1000psi |
| Maximum inlet water flow | 17m³/h | |
| Inlet water temperature range | 5~40℃ | |
| Inlet water pH range | 2~11 | |
| Cleaning pH range⁽³⁾ | 1~13 | |
| Maximum inlet water turbidity | 1.0NTU | |
| Maximum inlet SDI15 | 5.0 | |
| Inlet water residual chlorine | <0.1mg/L | |
| Maximum pressure drop per element ⁽⁴⁾ | 0.1MPa | |
Note:
(1) The parameters mentioned are based on data collected after the system has been running stably for 30 minutes;
(2) Water production volume has a deviation range of ±15%;
(3) Chemical cleaning is recommended at temperatures ≤30°C, with cleaning solution pH values not exceeding 2.0-12.0 above this temperature;
(4) When running in multi-element pressure vessels, the maximum pressure drop across the vessel should be kept within 0.25 MPa, not exceeding 0.3 MPa under any circumstances.
The data presented in the document has been tested and is reliable, yet variations due to different testing methods and operating conditions can occur. Therefore, users should combine these insights with practical applications and thoroughly understand the products of Ningbo Shuiyi Membrane Technology Development Co., Ltd.
Applications
Shuiyi Procycle® series high-pressure reverse osmosis membrane products, known for their high desalination rates, low energy consumption, and high-pressure tolerance, are ideal for applications such as seawater desalination, coal chemical processes, and steel industries aiming for near-zero discharge.
