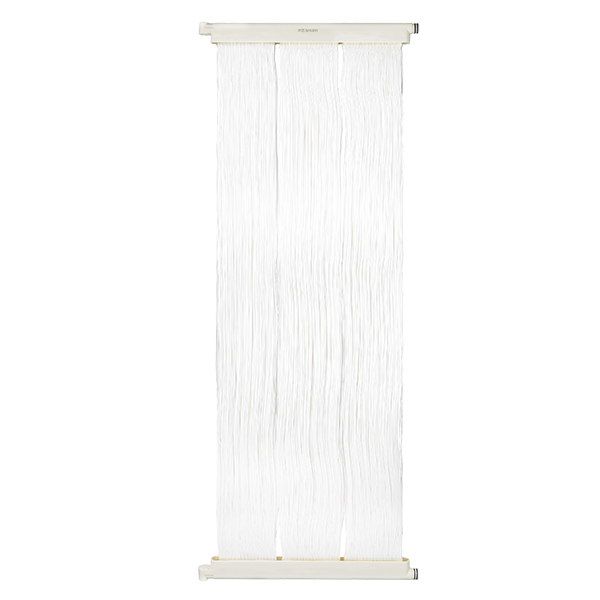

Xflon® XM-A Series Submerged PTFE Membrane Products
Shuiyi Xflon® Series Submerged PTFE Membranes are specifically engineered for high-contamination industrial wastewater treatment containing oils and solvents. With exceptional chemical stability, they demonstrate outstanding resistance to strong acids, alkalis, oxidizing agents, and various chemical corrosives. Incorporating Shuiyi’s proprietary hydrophilic modification and fouling-resistant technologies, these membranes achieve dual improve ments in treatment efficiency and service life.
Shuiyi Xflon® PTFE separation membranes are committed to resolving challenges in high-strength industrial wastewater treatment and industrial material separation. With outstanding chemical stability and separation precision, we deliver exceptional performance even under complex operating conditions, making us a trusted technology partner in the industrial separation field.
Description
- Full fluoropolymer construction ensures high tensile strength with zero filament breakage or delamination
Shuiyi PTFE hollow fiber membranes are made entirely from 100% PTFE material, with inner and outer layers sintered together, preventing delamination. PTFE hollow fiber membranes have high mechanical strength, suitable for harsh environments in membrane bioreactors, with no fiber breakage and a long service life. - Withstands concentrated acids, strong alkalis, and aggressive oxidizers with extended service life
Shuiyi PTFE hollow fiber membranes exhibit outstanding resistance to strong acids, alkalis, and oxidizers. Even when heavily contaminated, they can be thoroughly restored through chemical cleaning,meeting a 10-year lifespan requirement. - Permanent hydrophilic modification, strong anti-fouling performance
Shuiyi PTFE hollow fiber membranes use proprietary hydrophilic modification technology, making the fibers highly hydrophilic and oleophobic. Flux recovery after cleaning is complete, and continuous operation and high-frequency backwashing do not affect their hydrophilicity. These membranes can be stored, transported, and installed dry. The PTFE material used has the lowest surface tension among solid materials, generally preventing oily substances from lingering on its surface, thus exhibiting strong anti-fouling capabilities. - Hot-melt adhesive automated sheet placement with pulsed aeration technology, engineered for anti-fouling performance and sludge-resistant operation
Shuiyi submerged PTFE hollow fiber membrane modules utilize automated fiber alignment technology, arranging the fibers equidistantly and neatly with uniform gaps. Extensive practical applications have shown its effectiveness in alleviating root clogging issues in membrane assembly.
Data Sheet
| Model | Parameter | ||
| Item | SM20-XM36AP | SM40-XM36AP | |
| Membrane cassette parameters | Total membrane area | 720 m² | 1440 m² |
| Number of membrane elements | 20 assemblies | 40 assemblies | |
| Membrane element arrangement | 2×10 | 2×20 | |
| Membrane cassette length | 1166 mm | 1956 mm | |
| Membrane cassette width | 1722 mm | 1725 mm | |
| Membrane cassette height | 2793 mm | 2900 mm | |
| Recommended effective water depth | 3.1~3.3 m | 3.2~3.4 m | |
| Membrane element parameters loaded | Membrane element model | XM-36AP | |
| Effective membrane area | 36 m² | ||
| Membrane material | Hydrophilicity: 100% polytetrafluoroethylene | ||
| Nominal pore size | 0.1 μm | ||
| Membrane fiber outer diameter | 2.3 mm | ||
| External dimensions (L*W*H) | 824×46×2200 mm | ||
| Connection size | Φ40 | ||
| Membrane operational parameters | Maximum transmembrane pressure differential | 60 kPa | |
| Maximum backwash pressure | 100 kPa | ||
| Designed flux⁽¹⁾ | 10~40 L/m²·h,25℃ | ||
| Backwash flux⁽¹⁾ | 1.5 to 2.0 times the operational flux | ||
| Operating temperature⁽²⁾ | 5~50 ℃ | ||
| pH range | 0~14 | ||
| Aeration intensity⁽³⁾ | Pulse:50-90(Nm³/m²h) | ||
| Permeate quality ⁽⁴⁾ | Turbidity | ≤0.8 NTU | |
| SS | ≤5.0 mg/L | ||
Note:
(1) Design flux and backwash flux depend on the overall system operation and maintenance.
(2) When the operating temperature exceeds 50°C, please contact Shuiyi for high-temperature resistant membranes.
(3) Calculated based on the number of membrane modules.
(4) Produced water quality metrics may slightly vary depending on the inlet water quality.
The data presented herein are derived from specific tests and are true and reliable. However, differences may exist between test conditions and actual application environments, so actual results may vary. It is recommended that users verify and adjust according to their specific operating conditions and assume relevant responsibilities themselves.
Applications
Shuiyi Xflon® series submerged PTFE membrane products feature low surface tension, high anti-fouling performance, excellent chemical resistance, and high strength, with a service life of 5-10 years. They are suitable for application in municipal wastewater, textile dyeing wastewater, pulp and paper wastewater, basic chemical wastewater, steel wastewater, PCB electroplating wastewater, and semiconductor wastewater treatment.
