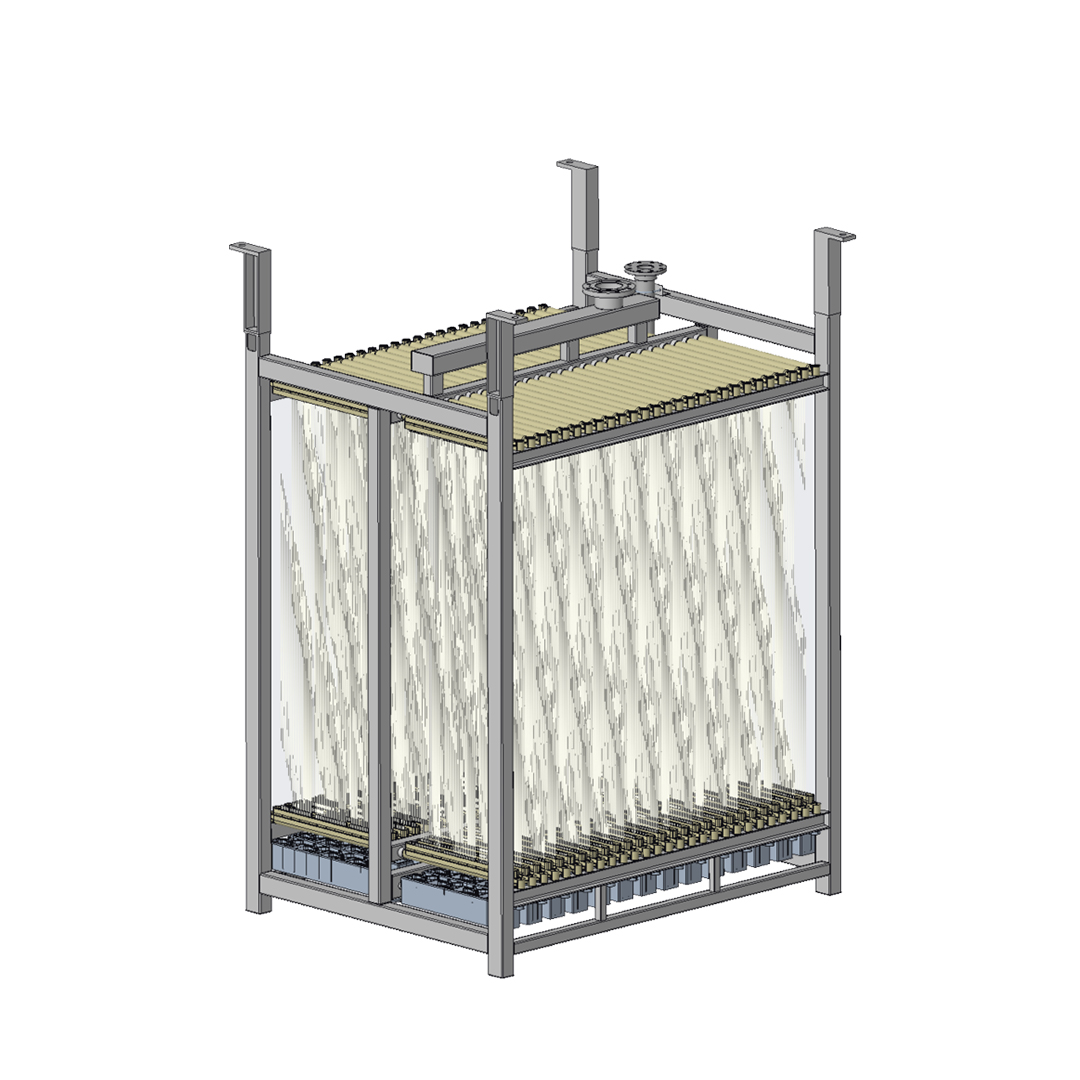

Shuiyi Slufri® SMR Series MBR Membrane
Shuiyi Slufri® SMR MBR membrane series utilizes a low-pressure, high-flux PVDF hollow-fiber composite membrane with hot-melt adhesive automated sheet placement. The membrane module integrates a pulse aeration system, delivering advantages such as high operational flux, stable water quality, strong fouling resistance, extended lifespan, and low energy consumption.
Compared to traditional MBR membranes, it achieves an air-to-water ratio as low as 3:1,reducing energy consumption by over 40%. The product is widely applicable in advanced wastewater treatment, reclaimed water reuse, and the treatment and reuse of various types of industrial wastewater.
- Uniform pore size, increasing flux
The membranefibers have anaverage pore size of 0.03 μm,with uniform pore distribution and high porosity, offering strong anti-fouling performance and anoperating flux 40% higher than industry-leading products. - Pulse Aeration: Energy Saving and Cost Reduction
Equipped with Shuiyi ’s ESP high-efficiency, energy-saving large-bubble pulse aeration technology, it reduces aeration volume by 40% compared to industry standards, achieving an air-to-water ratio below 3:1. Cleaning cycles are extended to 1.5-2 years, significantly lowering energy consumption and operational costs. - Packaged, Anti-Fouling and Enhanced Efficiency
Utilizing automated hot-melt adhesive membrane sheet arrange ment technology, membrane fibers are uniformly spaced and neatly arranged. This prevents sludge accumulation, reduces cleaning frequency, and improves water production efficiency. - Backwash-Free Design, Enhanced Performance
Backwash-free operation is supported to boost water production efficiency and output while reducing energy consumption. - High-strength material, durable and long-lasting
The membrane fibers have a tensile strength 110N and peel strength >3N, can withstand higher intensity backwashing without breaking or peeling, Extended service life to 5-10 years.
| Membrane assembly model | Parameter | ||
| SDP48-SMR40FP | SDP64-SMR40FP | ||
| Membrane cassette parameters | Total membrane area | 1920m² | 2560m² |
| Number of membrane elements | 48 assemblies | 64 assemblies | |
| Arrangement style | Double row | Double row | |
| Membrane cassette length | 2112mm | 2112mm | |
| Membrane cassette width | 1745mm | 1745mm | |
| Membrane cassette height | 2536mm | 2536mm | |
| Aeration method | Pulse aeration | ||
| Membrane element parameters | Membrane element model | SMR-40FP | |
| Effective membrane area | 40m² | ||
| Membrane fiber arrangement | Hot-melt adhesive automated sheet placement | ||
| Membrane material | Support layer: PET; Separation layer: PVDF | ||
| Membrane form | External pressure hollow fiber membrane | ||
| Nominal pore size⁽¹⁾ | 0.03μm | ||
| Membrane fiber outer diameter | 2.0mm | ||
| External dimensions (L*W*H) | 844×56×2198mm | ||
| Interface size | φ27 | ||
| Membrane operational parameters | Recommended transmembrane pressure differential | 0~35kPa | |
| Maximum backwash pressure | 70 kPa | ||
| Operational flux⁽²⁾ | 15~35L/m²·h,25℃ | ||
| Backwash flux⁽²⁾ | 20~60L/m²·h | ||
| Working temperature | 5~40℃ | ||
| Operational pH range | 2~10 | ||
| Aeration intensity⁽³⁾ | Pulse aeration: 50~75 (Nm³/m²•h) | ||
| Chemical cleaning pH range⁽⁴⁾ | 1~12 | ||
| Produced water quality ⁽⁵⁾ | Turbidity | ≤0.3NTU | |
| SDI15 | ≤3.0 | ||
Note:
(1) Pore size is tested according to GB/T38949-2020 Determination of Pore Size for Porous Membranes Standard Particle Method;
(2) Operational and backwash fluxes depend on the overall system operation and maintenance;
(3) Aeration intensity is calculated based on the upward-facing projected area of the membrane modules;
(4) During cleaning under standard conditions at 30°C;
(5) Produced water quality metrics may slightly vary depending on the inlet water quality.
The data presented herein have been tested and are reliable, but variability may occur due to different testing methods and operating conditions. Therefore, users should combine practical application processes and thoroughly understand the products of Ningbo Shuiyi Membrane Technology Development Co., Ltd.
The Shuiyi Slufri® series MBR membrane products offer a series of advantages including simple sewage treatment processes, small footprint, excellent shock load resistance, and stable water quality and quantity. They not only achieve solid-liquid separation but also prevent the common problem of suspended solids leakage seen in traditional sedimen tation separation processes. Widely used in various water treatment fields including municipal sewage, textile dyeing
wastewater, basic chemical wastewater, mine water, steel water, PCB electroplating wastewater, power water, and semiconductor water.
