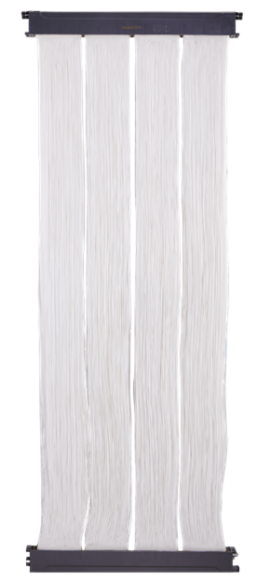

Shuiyi Slufri® SMU-F Series Equivalent to Suez Zeeweed 500D MBR Membrane
Seamless Equivalent to Suez Zeeweed 500D
Shuiyi Slufri® Series MBR Membrane Modules feature uniformly aligned fibers, peel-resistant coatings, stable water output in quality and quantity, extended cleaning intervals, and prolonged service life. Integrated with Shuiyi’s proprietary Pulse Aeration Technology, these membranes demonstrate strong market competitiveness across critical technical and economic indicators, including outlet water quality, operational cost, cleaning and maintenance requirement and service life. They are widely applicable in advanced sewage treatment, water reuse and diverse industrial wastewater recycling applications.
Description
- Automated Fiber Alignment — No Smudge Accumulation
Hot-melt adhesive fiber alignment ensures uniform spacing and orderly encapsulation of membrane fibers. It effectively enhances membrane module’s fouling resistance, reduces cleaning frequency and increases water production efficiency.
- High Physical Mechanical Strength — No Breakage or Delamination
Continuous optimization of membrane manufacturing technology strengthens the bonding between the filtration layer and the support layer, thus improves fiber tensile strength (＞140N) and peel strength (＞3N), enabling resistance to higher-intensity hydraulic shocks without breakage or delamination for long-term stable water quality.
- Small Pore Size, Uniformly distributed Pores — Stable and Reliable Outlet Water
With an average pore size of 0.03μm and uniformly distributed porosity, the membrane fibers effectively remove pollutants including suspended solids, bacteria, colloids and viruses, delivering stable and reliable water quality.
- High Porosity — High Flux
The high porosity of membrane fibers achieves a typical operational flux of 15-35 LMH of MBR membranes at normal temperature, reducing required membrane area and lowering system investment for greater economic efficiency.
- Fouling/Flux Decay Resistance — Extended Cleaning Intervals and Service Life
Shuiyi membranes employ proprietary hydrophilic modification technology, endowing hollow-fiber membranes with permanent hydrophilicity. This significantly enhances fouling resistance and flux decay resistance, extending cleaning intervals and service life.
Data Sheet
| Item | Parameter | |
| SMR-40FP | ||
| Characteristic Conditions | Effective Membrane Area | 40 m2 |
| Membrane Material | Support Layer: PET; Separation Layer: PVDF | |
| Membrane Form | External Pressure Hollow-Fiber Membrane | |
| Fiber Outer Diameter | 2.0 mm | |
| Nominal Pore Size | 0.03 μm | |
| Shipping Weight（Dry） | 23 kg | |
| Operating Parameters | Recommended Transmembrane Pressure Differential | 0 ~ 35 kPa |
| Maximum Backwash Pressure | 70 kPa | |
| Operational Flux (1) | 15 ~ 35 L/m2.h，25℃ | |
| Backwash Flux (1) | 20 ~ 60 L/m2.h | |
| Operational Temperature | 5 ~ 40 ℃ | |
| Operational pH Range | 2 ~ 10 | |
| Aeration Intensity | Pulse Aeration: 50 ~ 75 (Nm3/m2∙h) (2) | |
| Perforated Aeration: 80 ~ 120 (Nm3/m2∙h) (2) | ||
| Chemical Cleaning pH Range | 1 ~ 12(3) | |
| Max. NaCIO Tolerant Concentration | 3000 mg/L | |
| Product Water Quality (4) | Turbidity | ≤0.5 NTU |
| SDI15 | ≤5 | |
Notes:
- Operating flux and backwash flux depend on the overallsystem operation and maintenance conditions;
- Membrane area is calculated based on the projected area of the membrane surface (top-facing portion);
- Cleaning performanceis measured under standard conditions at 30℃;
- Permeate water quality may vary slightly depending on the quality of the inlet water.
Why choose shuiyi MBR membranes for water treatment?
Shuiyi Slufri® series MBR membrane products have a series of advantages, such as simple wastewater treatment process, small footprint, excellent shock load resistance, and stable water quality and quantity.
It not only realizes solid-liquid separation, but also avoids leaking of suspended solids, which is a common problem in the traditional sedimentation and separation process.
