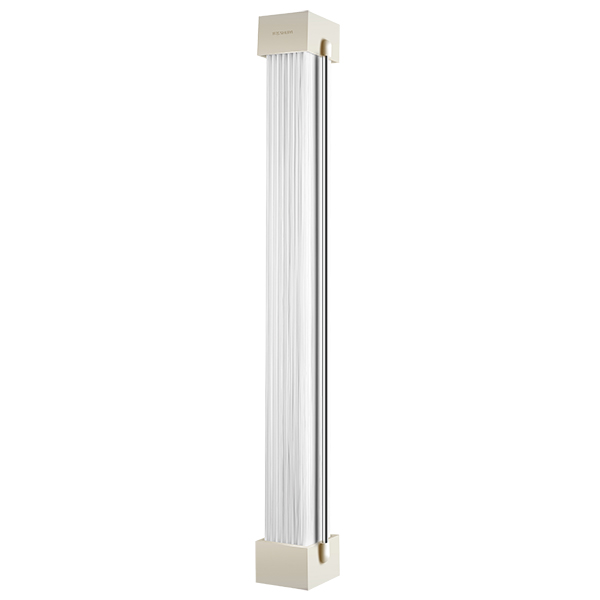

Submerged PTFE Membrane Products Shuiyi Xflon®XM-G Series
Shuiyi Xflon® series submerged PTFE membrane products are specifically developed for high-pollution industrial wastewater sectors such as those containing oil and solvents. These PTFE hollow fiber membranes feature exceptional chemical stability, resistant to strong acids, strong alkalis, oxidizers, and various chemicals, utilizing Shuiyi’ proprietary hydrophilic modification and anti-fouling technologies to enhance both performance and longevity. Shuiyi Xflon® PTFE separation membranes are dedicated to solving challenges in high-difficulty industrial wastewater treatment and industrial material separation, aspiring to be a leading brand in industrial separation technology.
Description
- Constructed entirely of fluorinated materials, high strength, no fiber breakage, no delamination.
Shuiyi PTFE hollow fiber membranes are made entirely from 100% PTFE material, with inner and outer layers sintered together, preventing delamination. PTFE hollow fiber membranes have high mechanical strength, suitable for harsh environments in membrane bioreactors, no fiber breakage, long lifespan. - Resistant to strong acids, strong alkalis, and strong oxidizers, long lifespan
Shuiyi PTFE hollow fiber membranes exhibit outstanding resistance to strong acids, alkalis, and oxidizers. Even when heavily contaminated, they can be thoroughly restored through chemical cleaning, meeting a 10-year lifespan requirement. - Permanent hydrophilic modification, strong anti-fouling capability
Shuiyi PTFE hollow fiber membranes use proprietary hydrophilic modification technology, making the fibers highly hydrophilic and oleophobic. Flux recovery after cleaning is complete, and continuous operation and high-frequency backwashing do not affect their hydrophilicity. These membranes can be stored, transported, and installed dry. The PTFE material used has the lowest surface tension among solid materials, generally preventing oily substances from lingering on its surface, thus exhibiting strong anti-fouling capabilities. - Automatic fiber alignment and pulse aeration contribute to its strong anti-fouling capabilities, making it less likely to accumulate sludge.
Shuiyi submerged PTFE hollow fiber membrane modules utilize automated fiber alignment technology, arranging the fibers equidistantly and neatly with uniform gaps. Extensive practical applications have shown its effectiveness in alleviating root clogging issues in membrane assembly
Data Sheet
| Membrane cassette specification | Parameter | ||||
| Item | |||||
| SM20-XM6G | SM40-XM6G | SM20-XM12G | SM40-XM12G | ||
| Membrane cassette parameters | Total membrane area | 120m² | 240m² | 240m² | 480m² |
| Number of membrane elements | 20 units | 40 units | 20 units | 40 units | |
| Membrane element arrangement | 2×10 | 5×8 | 2×10 | 5×8 | |
| Membrane cassette length | 2000mm | 1800mm | 2000mm | 1800mm | |
| Membrane cassette width | 600mm | 1300mm | 600mm | 1300mm | |
| Membrane cassette height | 1900mm | 1900mm | 3000mm | 3000mm | |
| Recommended effective water depth | 2.2~2.4m | 2.2~2.4m | 3.3~3.5m | 3.3~3.5m | |
| Membrane element parameters loaded | Membrane element model | XM-6G | XM-12G | ||
| Effective membrane area | 6m² | 12m2 | |||
| Membrane material | Hydrophilicity: 100% polytetrafluoroethylene | ||||
| Nominal pore size | 0.1μm | ||||
| Membrane fiber outer diameter | 2.3mm | ||||
| External dimensions (L*W*H) | 164×154×1300mm | 164×154×2410mm | |||
| Interface size | DN20 | DN20 | |||
| Membrane operational parameters | Maximum transmembrane pressure differential | 60kPa | |||
| Maximum backwash pressure | 100kPa | ||||
| Designed flux⁽¹⁾ | 10~40L/m²·h,25℃ | ||||
| Backwash flux⁽¹⁾ | 1.5 to 2.0 times the operational flux | ||||
| Working temperature | 5~50℃ | ||||
| pH range | 0~14 | ||||
| Aeration intensity⁽³⁾ | 30-60L/min/unit | ||||
| Produced water quality ⁽⁴⁾ | Turbidity | ≤0.8NTU | |||
| SS | ≤5.0mg/L | ||||
Note:
(1) Design and backwash fluxes depend on the entire system’s operation and maintenance;
(2) For use temperatures above 50°C, contact Shuiyi for high-temperature resistant membranes;
(3) Calculations are based on the number of membrane modules.
The data presented herein have been tested and are reliable, but variability may occur due to different testing methods and operating conditions. Therefore, users should combine practical application processes and thoroughly understand the products of Ningbo Shuiyi Membrane Technology Development Co., Ltd.
Applications
Shuiyi Xflon® series submerged PTFE membrane products feature low surface tension, high anti-fouling capabilities, excellent chemical resistance, and high strength, with a service life of 5-10 years. Suitable for application in municipal wastewater, textile dyeing wastewater, pulp and paper wastewater, basic chemical wastewater, steel wastewater, PCB electroplating wastewater, and semiconductor wastewater treatment
