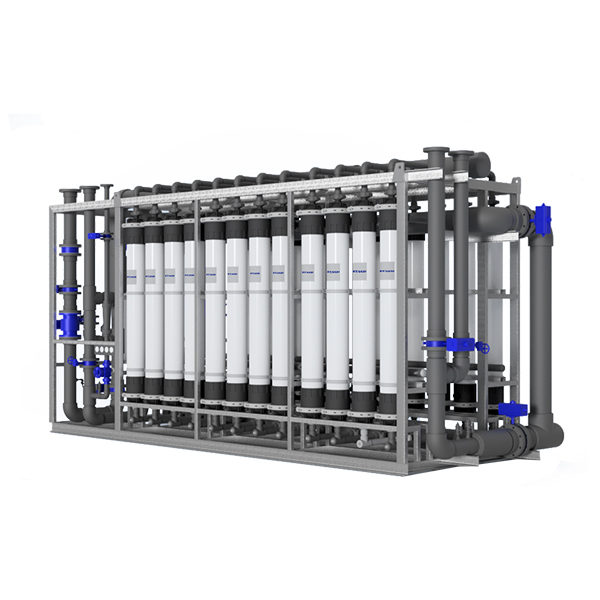

Ultrafil™ Series Pressurized UF Membrane Frame
水益Ultrafil™系列加压式超滤膜产品采用高标准PVDF材质，形成均质中空纤维膜，对悬浮物、胶体、微生物、细菌和病毒等均有极高的去除率，确保水质始终如一、稳定可靠。标准化外压式膜组件，可适应更广泛的进水水质；组件种类齐全，兼容市场主流产品，可无缝替换。模块化机架设计，易于扩展集成，安装简便，维护成本低。
Description
- 高抗污染通量
采用专利亲水改性技术，具有优异的抗污染能力，在较低的跨膜压差下仍能保持较高的运行通量，并且在使用过程中通量下降的时间较长。 - 卓越的水质
0.03μm高精度过滤孔径，配合均质海绵结构，对水中胶体颗粒、细菌、病毒等去除率高，确保产水水质始终优良。 - 使用寿命长
膜纤维密封采用离心密封工艺，密封层无气泡，根部无蠕变，可承受反复高强度气水冲刷，最大限度降低纤维断裂风险，延长使用寿命。 - 产水效率高：
膜纤维采用高规格PVDF材质，力学性能优异，断裂强力≥4.5N，伸长率≥150%。应用工艺可实现气水联合反冲洗，清洗彻底，有效控制污染，同时减少反冲洗用水量，提高产水效率，回收率可达95%以上。 - 通用结构，更换无忧
水益加压式超滤膜产品可无缝替换市面上主流的超滤膜产品，安装简单，改造成本低，运行维护便捷无忧。
Data Sheet
| Model | Parameter | |||
| Item | ||||
| UP-860D | UP-880D | IP-880D | ||
| Component parameters | Effective membrane area | 52m² | 77m² | 77m² |
| Membrane material | PVDF | |||
| Membrane form | External pressure hollow fiber membrane | |||
| Nominal pore size ⁽¹⁾ | 0.03μm | |||
| Membrane fiber inner and outer diameter | 0.7/1.3mm | |||
| Dimensions | φ225×1860mm | φ225×2360mm | φ225×2469mm | |
| Interface size | DN50 | DN50 | DN100 | |
| Component weight (wet) | 50kg | 63kg | 65kg | |
| Membrane operational parameters | Maximum inlet turbidity⁽²⁾ | 300NTU | ||
| Operational pH range | 2~10 | |||
| Temperature | 5~40℃ | |||
| Filtration method | Dead-end or crossflow filtration | |||
| Maximum inlet pressure | ≤0.6MPa | |||
| Operational flux ⁽³⁾ | 30~120L/m²·h,25℃ | |||
| Maximum transmembrane pressure differential | ≤0.2MPa | |||
| Produced water quality⁽⁴⁾ | Backwash flow rate | 80~120L/m²·h | ||
| Backwash pressure | ≤0.25MPa | |||
| Air scour inlet pressure | ≤0.1MPa | |||
| Maximum module inlet air pressure | ≤0.25MPa | |||
| Air scour airflow | 4~12Nm³/h•unit | |||
| Turbidity | ≤0.1NTU | |||
| SDI₁₅ | ≤3.0 | |||
Note:
(1) Test method: Determination of Pore Size for Porous Membranes — Standard Particle Method GB/T38949-2020;
(2) The influent condition parameters are values under extreme laboratory testing conditions;
(3) Operational and backwash flux depend on the operation and maintenance of the entire system;
(4) Produced water quality metrics may vary slightly depending on the quality of the influent. The data presented herein have been tested and are reliable, but variability may occur due to different testing methods and operating conditions.
Therefore, users should combine practical application processes and thoroughly understand the products of Ningbo Shuiyi Membrane Technology Development Co., Ltd.
Applications
水益Ultrafil™系列加压式超滤膜产品具有高通量、膜系统集成度高、设备投资低、系统占地面积小等特点，适用于对水质要求高、空间规划紧凑的应用场合，广泛应用于市政饮用水、市政再生水、纺织印染废水、制浆造纸废水、基础化工废水、矿井水、钢铁废水、PCB电镀废水、电厂用水、半导体水处理等领域。
