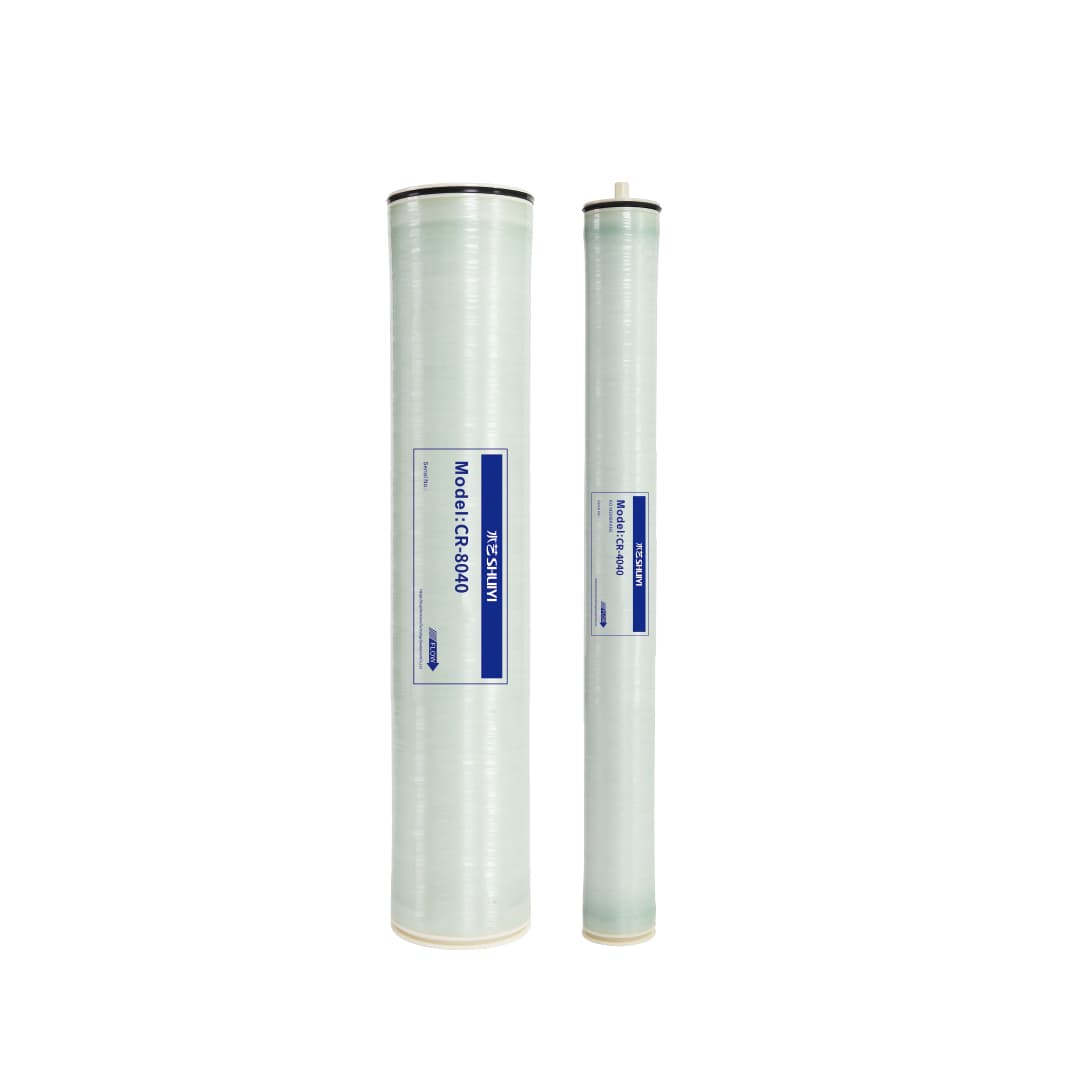

Cyclean™ Enhanced RO Membrane Products
Shuiyi Cyclean™ Enhanced RO Membranes feature durability and stable performance, making them ideal for challenging wastewater reuse applications involving high COD, high hardness and frequent cleaning requirements.
Description
- Rugged and Durable
Cylean™ material technology enables a thicker separation layer and enhanced scratch resistance, ensuring consistent permeate quality. - Anti-Fouling
Rheogood™ flow channel technology facilitates the discharge of solid contaminants, minimizing fouling during operation and enabling rapid differential pressure recovery after cleaning.
Data Sheet
| Model | Parameter | ||
| Item | CR-8040 | CR-4040 | |
| Membrane element parameters⁽¹⁾ | Effective membrane area | 37 m² | 8.4 m² |
| Membrane material | Aromatic polyamide | ||
| Structure | Spiral-wound | ||
| Inlet mesh thickness | 34 mil | 28 mil | |
| Dry membrane weight | 13 kg | 4 kg | |
| Wet membrane weight | 15 kg | 4.5 kg | |
| Length | 1016 mm | ||
| Diameter | 201 mm | 99 mm | |
| Permeate collector installation diameter | 29 mm | 19 mm | |
| Connection length | – | 27 mm | |
| Standard test solution | 2000 mg/L NaCl | ||
| Operating pressure | 1.55 MPa | ||
| Test temperature | 25 ℃ | ||
| Recovery rate | 15% | ||
| pH | 7~8 | ||
| Water production rate⁽²⁾ | 41 m³/d | 8.5 m³/d | |
| Standard rejection rate | 99.6% | ||
| Membrane operational parameters | Maximum operating pressure | 4.1 MPa/600 psi | |
| Maximum inlet water flow | 17 m³/h | 3.6 m³/h | |
| Inlet water temperature range | 5~40 ℃ | ||
| Inlet water pH range | 2~11 | ||
| Cleaning pH range⁽³⁾ | 1~13 | ||
| Maximum inlet water turbidity | 1.0 NTU | ||
| Maximum inlet SDI₁₅ | 5.0 | ||
| Inlet water residual chlorine | <0.1 mg/L | ||
| Maximum pressure drop per module⁽⁴⁾ | 0.1 MPa | ||
Note:
(1) The parameters listed are measured after 30 minutes of stable system operation;
(2) Water production rate has a deviation range of ±15%;
(3) Chemical cleaning recommended at temperatures ≤30°C, above which cleaning solution pH shall not exceed 2.0-12.0;
(4) In multi-element housings, the maximum pressure drop from inlet to outlet should be controlled within 0.25 MPa, not exceeding 0.3 MPa in extreme cases;
The data presented herein are derived from specific tests and are true and reliable. However, differences may exist between test conditions and actual application environments, so actual results may vary. It is recommended that users verify and adjust according to their specific operating conditions and assume relevant responsibilities themselves.
Applications
Shuiyi Cyclean™ Enhanced RO Membranes are widely used in challenging wastewater reuse applications across the steel, coal chemical and petrochemical industries due to their rugged and stable performance.
